Automatic
Rebar Cutting Line Model SL-PRO32 /SL-PRO40
A 12m Stock Bar May Be Cut in Various Lengths. the Plc Accepts Such Data as a Program.
Stored Program Is Recalled; Machine Is Set in Operation
WE ARE OPEN AND FUNCTIONING! WE HAVE STOCKS OF SEVERAL MODELS TO MAKE IMMEDIATE DOMESTIC DISPATCHES AND OVERSEAS SHIPMENTS. PLEASE CONTACT US FOR A QUOTE.

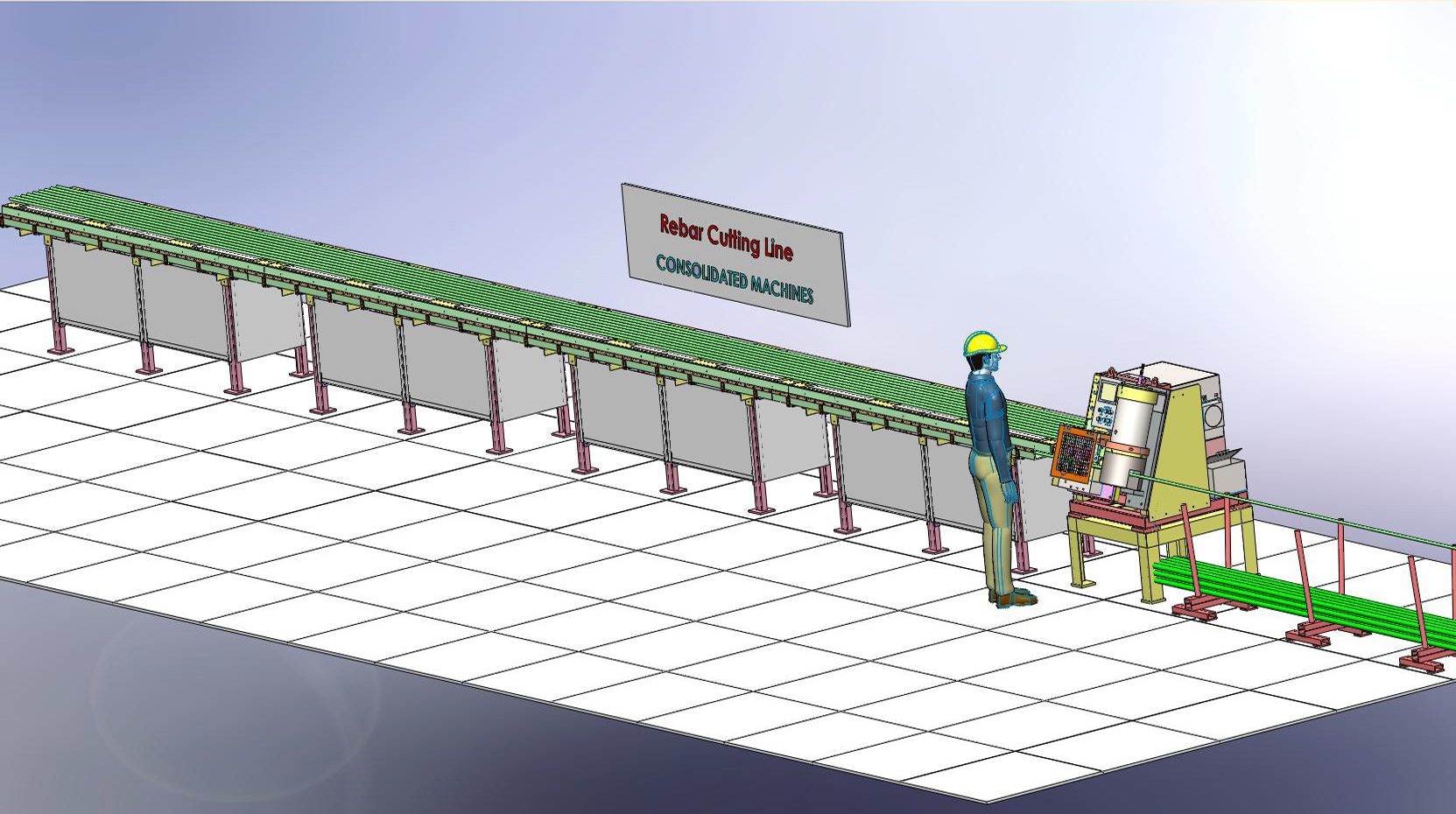

GENERAL ARRANGEMENT VIEW
AUTOMATIC REBAR CUTTING LINE MODEL SL-PRO32 /SL-PRO40
GENERAL FEATURES
Available in Two Models – To Suit Maximum Size TMT Bar
METRIC32 Model SL-PRO32 and METRIC40 Model SL-PRO40
Heavy Duty Hydraulic Cutting Machine with PLC Controls
Bar Support Pedestal with Conveyor Tray to Assist Bar Feeding
Production Estimate per Ten Hour Indicative: 45 / 60 TONS
Plant Foot Print: 13M X 2.5M (PLUS CUT LENGTH)
Full Automatic Function
Modular Design – Easy to Install or Relocate

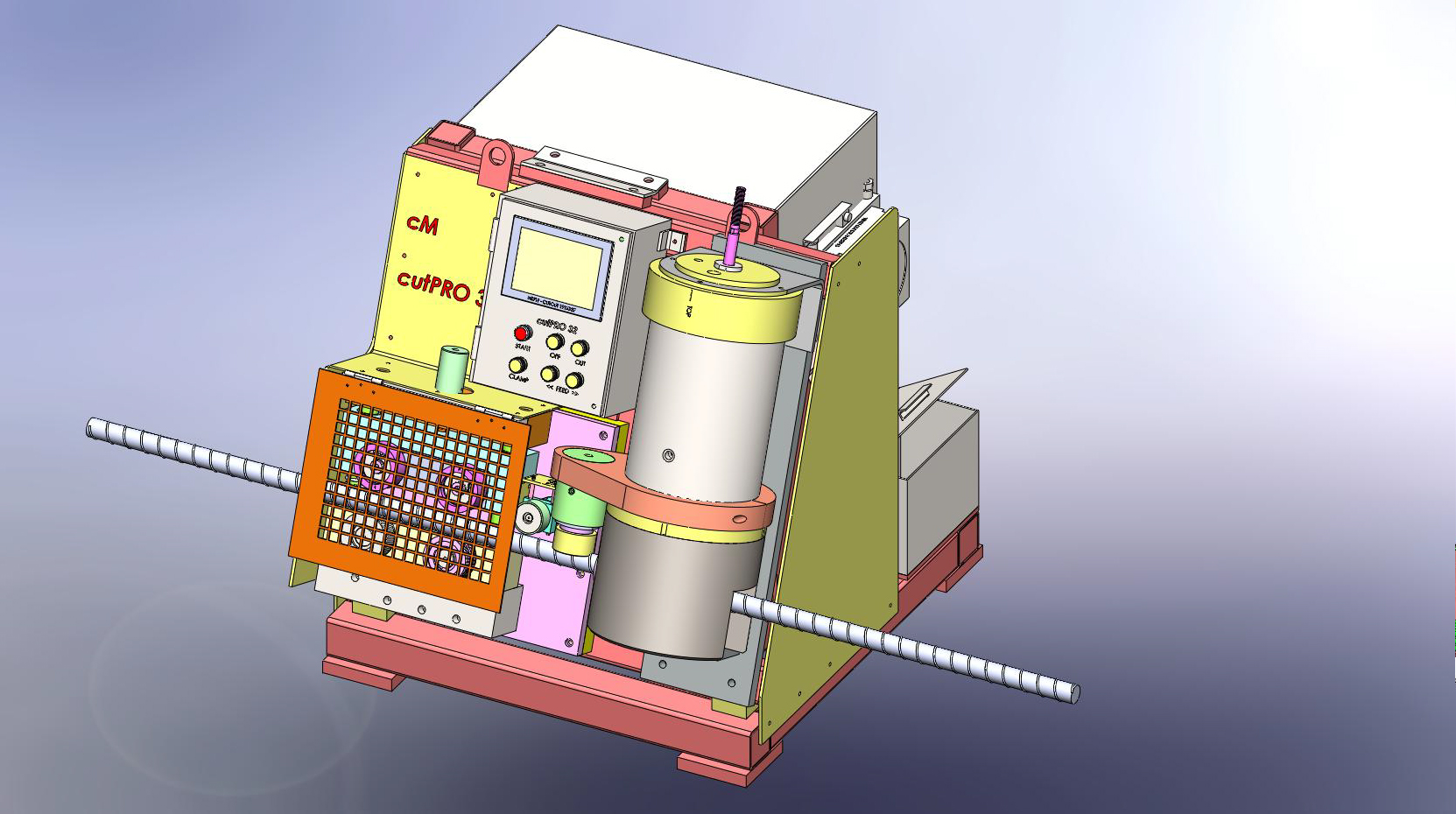

Automatic Cutting Machine Model Cutpro 32/40
Electro-Hydraulic Drive
Built with Best in Class like Bosch Rexroth / Yuken / Siemens

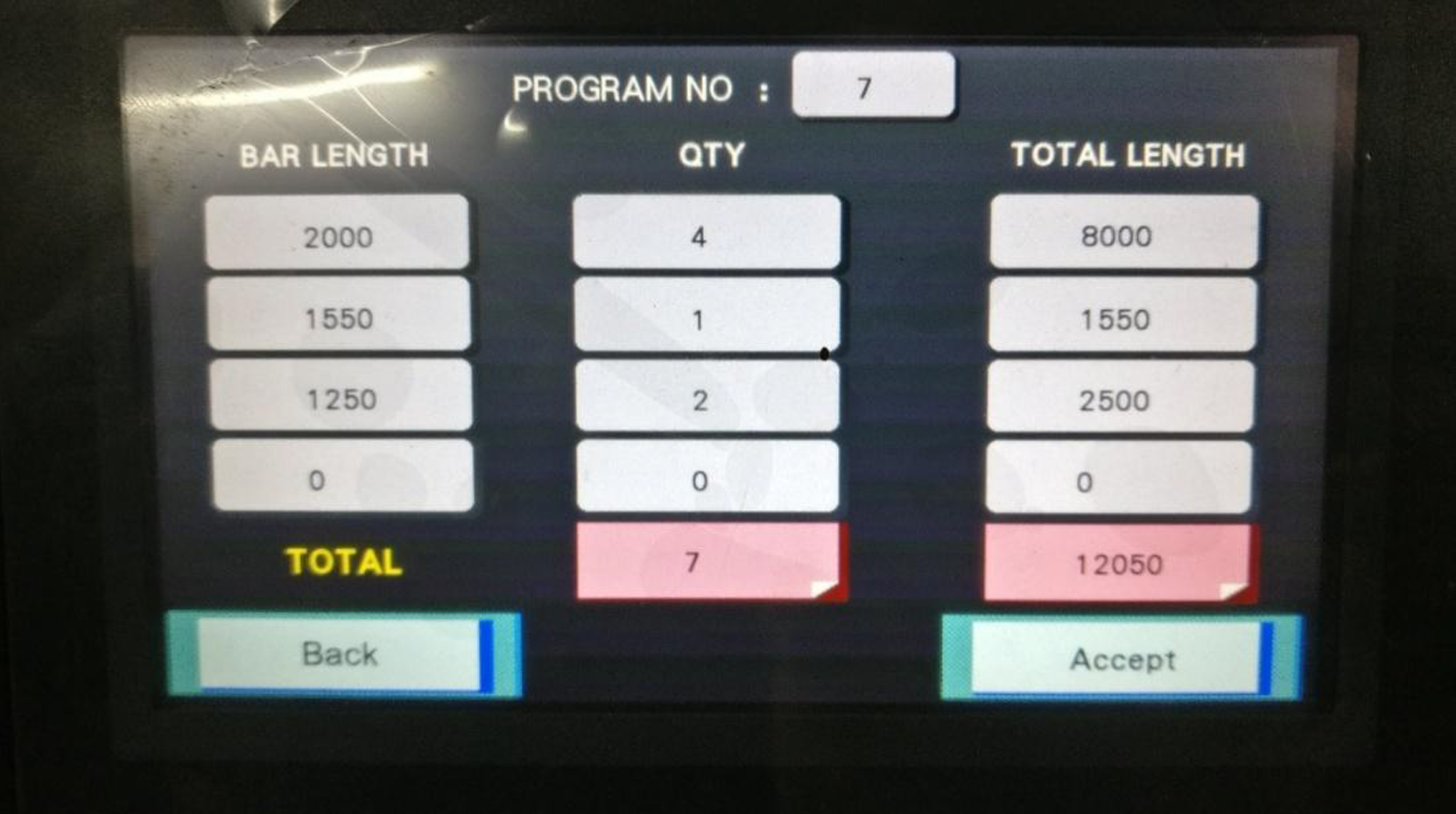

PLC Control System
A 12m Stock Bar May Be Cut in Various Lengths. the Plc Accepts Such Data as a Program. Stored Program Is Recalled; Machine Is Set in Operation
Cutting Capacity Metric Tmt Grade FE500 / FE550D (BAR SIZE X NO OF BARS)
MODEL SL-PRO32: 32 / 25 / 20 X 1NO 16 X 2 NOS
MODEL SL-PRO40: 40 / 32 / 25 X 1NO 20/16 X 2NOS
Protective Cover Provided on Feeder Interlocked with Run Mode
Compact Electro-Hydraulic Drive Is Integrated In the Machine
Power Installed: Standard Three Phase AC Motors
Model SLPRO32 : 5HP (3.8KW)
Model SLPRO40 : 7.5HP (5.8KW)
Cutting Accuracies
Cutting Accuracy +/-2mm per Meter Length or Better
Bar Support System
1. Bar Receiving Pedestal Integrated with a Roller Conveyor, Bars to Process Are Dropped-In. Rollers Help the Bar to Progress Smoothly Pedestal Length 12M – Maximum Weight Capable 4T Distributed
2. Cut Bars Collecting Elements – Four Numbers – Arranged as Required
Materials and Finish
Tooling and Load Bearing Elements of Alloy Steel Toughened, Phosphate Finish Panels Powder Coated, Structure Fabrication with Zinc Red-Oxide and Quality Paint Finish
