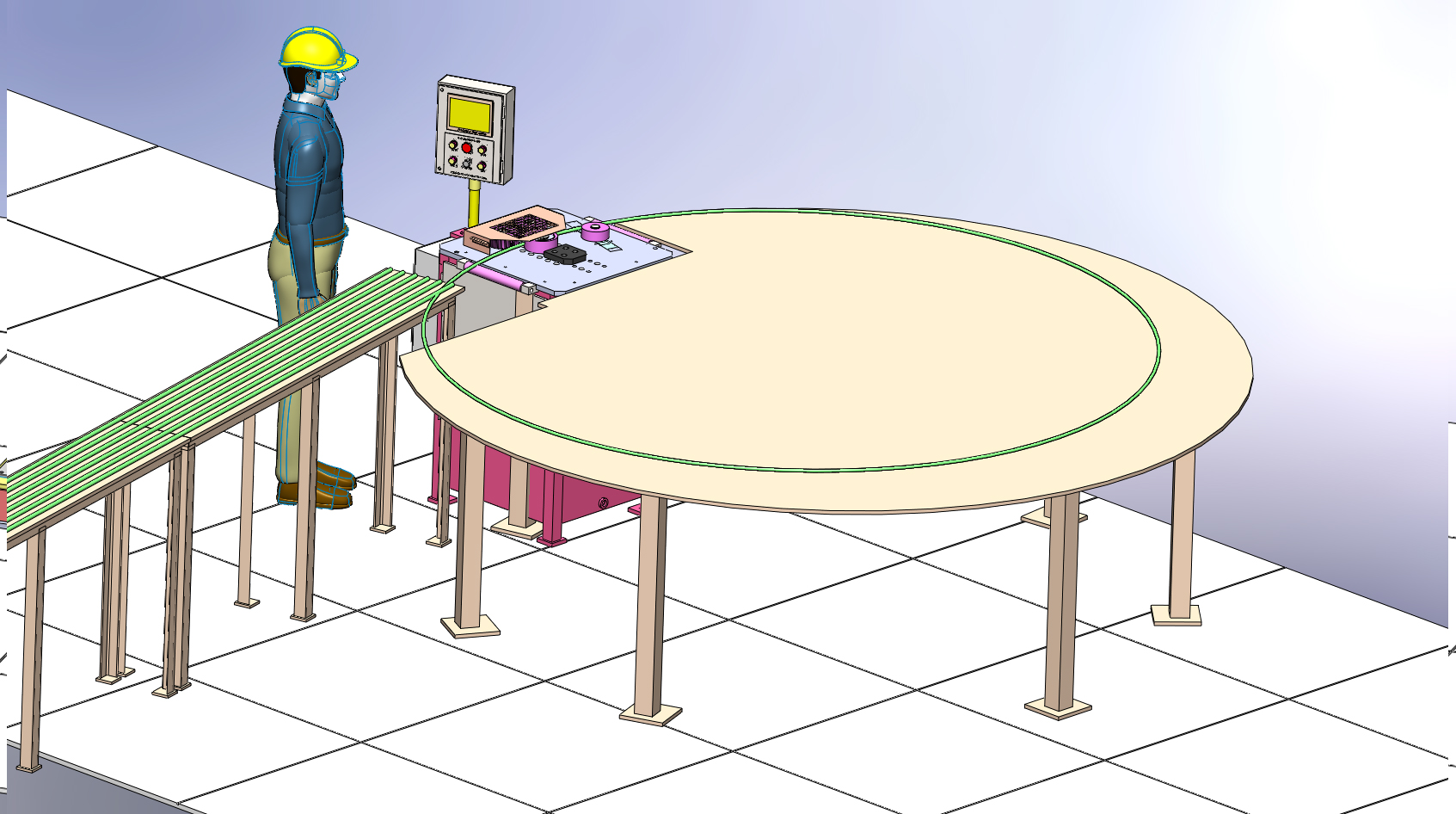

Arch - Radius - Ring Forming
An Ideal Equipment When Tmt Bars Are to Be Formed in Large Arc-Radius or Rings.
The Plc / Numerical Control Helps to Set the Machine to Form the Desired Profile.
It Will Then Store the Data for Future Use.
A Robust Electro-Hydraulic Drive Powers the Machine Which Ensures Excellent Productivity, Lifecycle and Minimal Maintenance.
Machine Specifications
| Model | Max Bar size | Forming Speed | ** Forming Capacity | Power | Machine Size | Machine Weight |
|---|---|---|---|---|---|---|
| Gr 500 | m/min | Bar Size X Min Ring Size | Kw (HP) | (LXBXHt) mm | Kgs | |

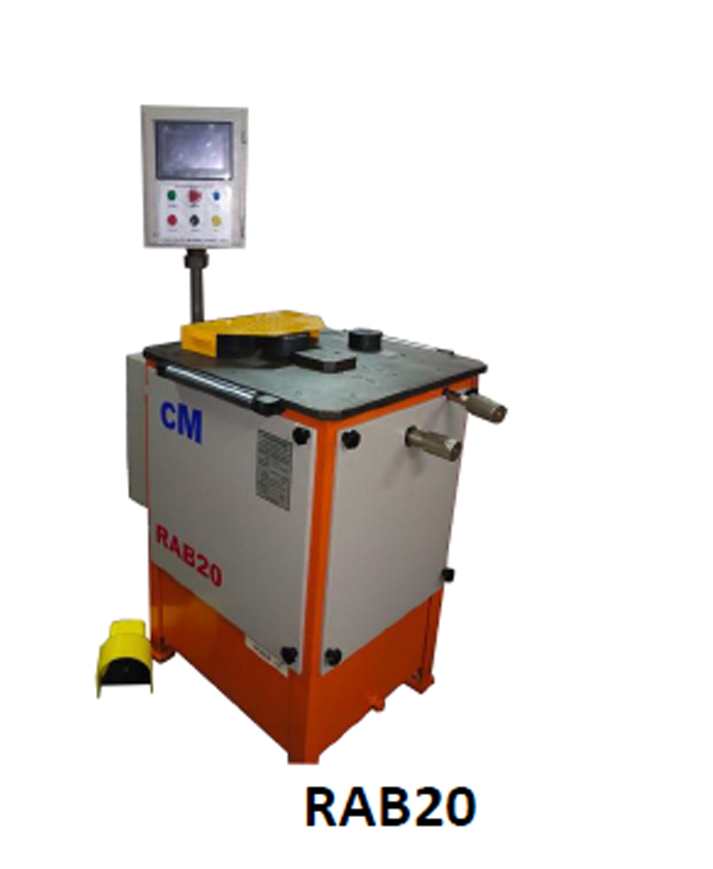

| RAB20 | Metric TMT-20 | 10-16 | 20x1500 / 16x750 | 3 (2.3) | 800x700x1000 | 375 |

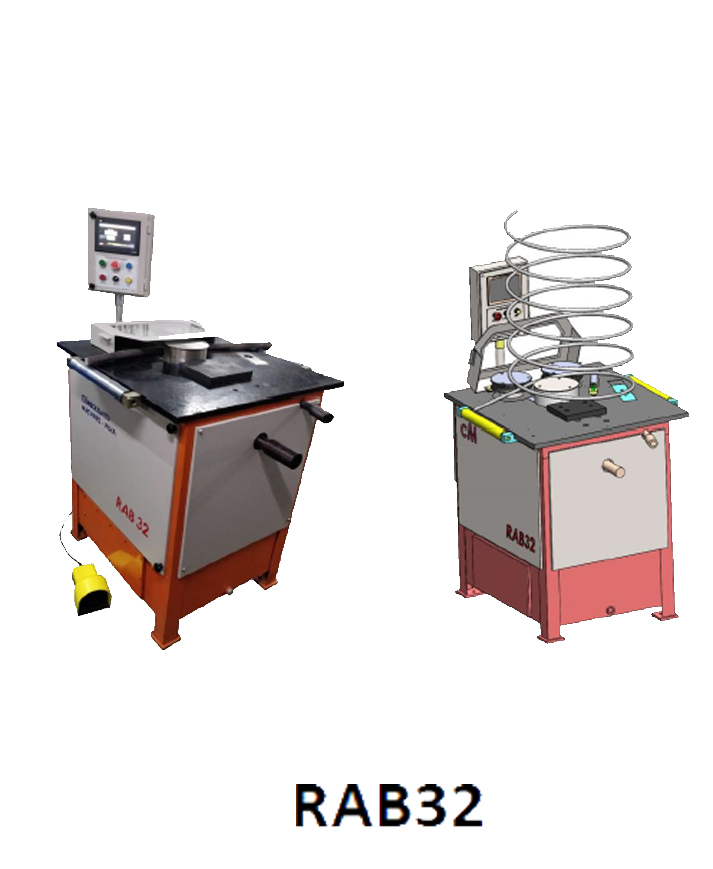

| RAB32 | Metric TMT-32 | 10-17 | 32x3000 / 25x1250 | 5.8 (7.5) | 1100x800x1000 | 775 |
| ** The Forming Capacity of Such Machine Is Determined by The Minimum Size Ring the Machine Is Able to Form | ||||||
✓ PLC Controls : PLC Makes the Machine a Lot User Friendly, Has Several Working Advantages, and It Can Store Data for Future Procedures.
✓ Direct Drive Design with Radial Piston Hydraulic Motors Is Super-Efficient and Minimal Maintenance
✓ Machine without PLC Automation: Here the Roller Position Is Set Manually
✓ Covers and Safety Systems Ensures Safe Working Conditions
✓ Spiral Forming Is Optional Attachment Max Size TMT Metric 12 RAB20 (16 ON RAB32)
Materials and Finish
Tooling and Load Bearing Elements of Alloy Steel Toughened, Phosphate Finish Panels Powder Coated, Structure Fabrication with Zinc Red-Oxide and Quality Paint Finish
Watch Video: https://youtube.com/shorts/a6SotxlpbXM?si=Oh2HdE8sRkpBBkkV
Machine Is Available with / without Plc Controls
