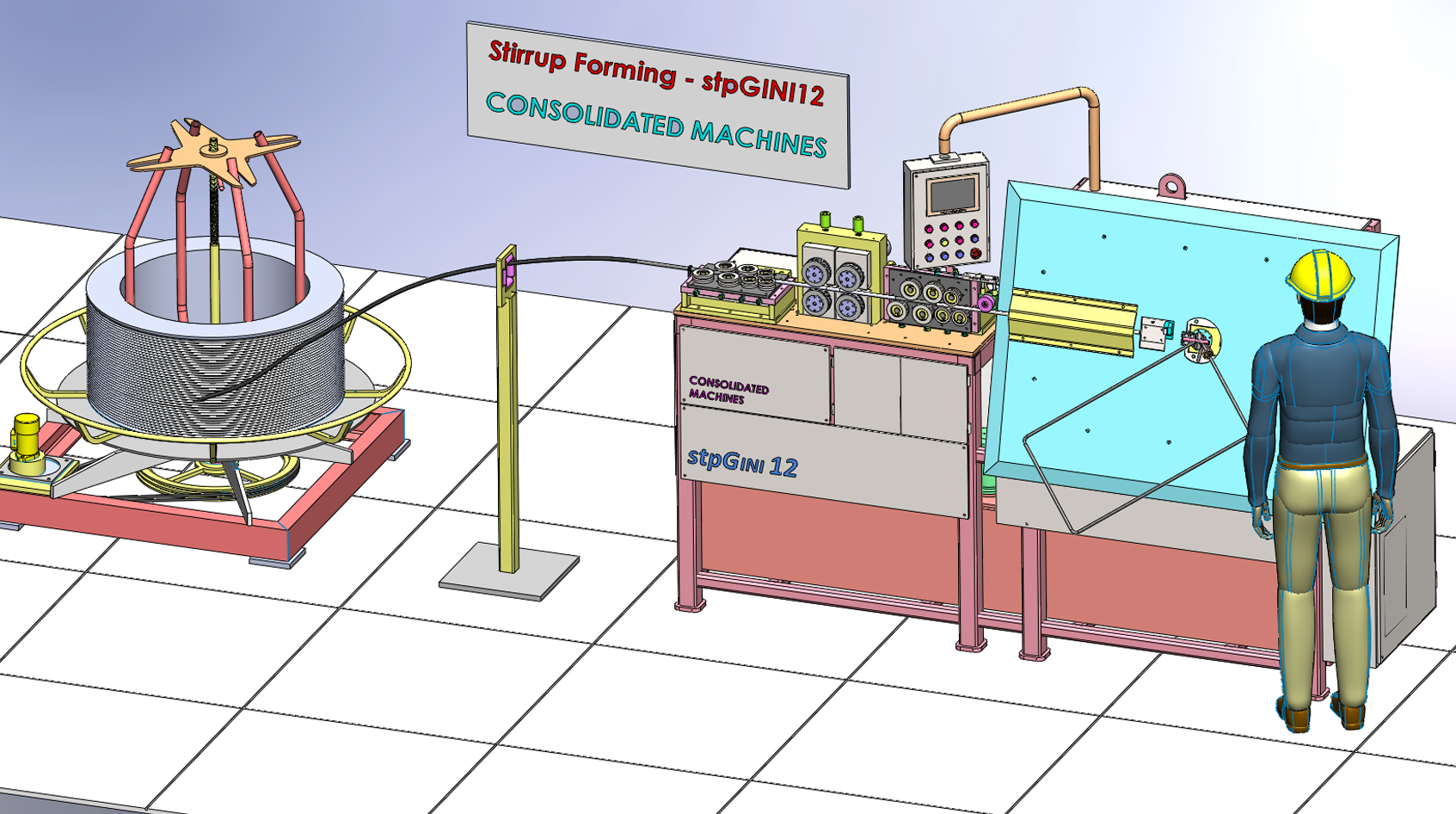

Fully Automatic Stirrup Bender - stpGini12

General Features

Stirrup Forming from Rebar Coils Forming Capacity : TMT Metric Size 8 / 10 / 12 (USA Equival #2 / #3 / #4)

Production Estimates : 3 to 6T per 10 Hr Shift - Common Stirrup

Power Installed : 18 HP (14.2 kW) – AC Electric Motors

Bending Speed : Near 40RPM (Variable Control) – Ideal for Large Shapes

Pull Speed : Near 600 MM/SEC

Performance Accuracies

Bending Accuracy +/- 1.5 DEG or Better

Length Accuracy +/- 2MM per Meter Length or Better

Caution - Bending Accuracy Repeatibility Also Depends on Bar Material Elasticity

System : Conventional Electro-Hydraulics – With Plc Controls

Machine Foot Print : 2700 X 700 MM

Coil Dispenser : Powered System to Synchronize with Machine Speed – To Ensure Smooth Running

Accepts Coil Size - Minimum ID 650 MM - Maximum OD 1200 MM Maximum Height 600MM Maximum Weight 2500 KGS

Coil Dispenser Foot Print : 1200 X 1200 MM

Materials and Finish

Tooling and Load Bearing Elements : Alloy Steel Toughened, Phosphate Finish

Panels Powder Coated, Structure Fabrication With Zinc Red-Oxide and Quality Paint Finish
