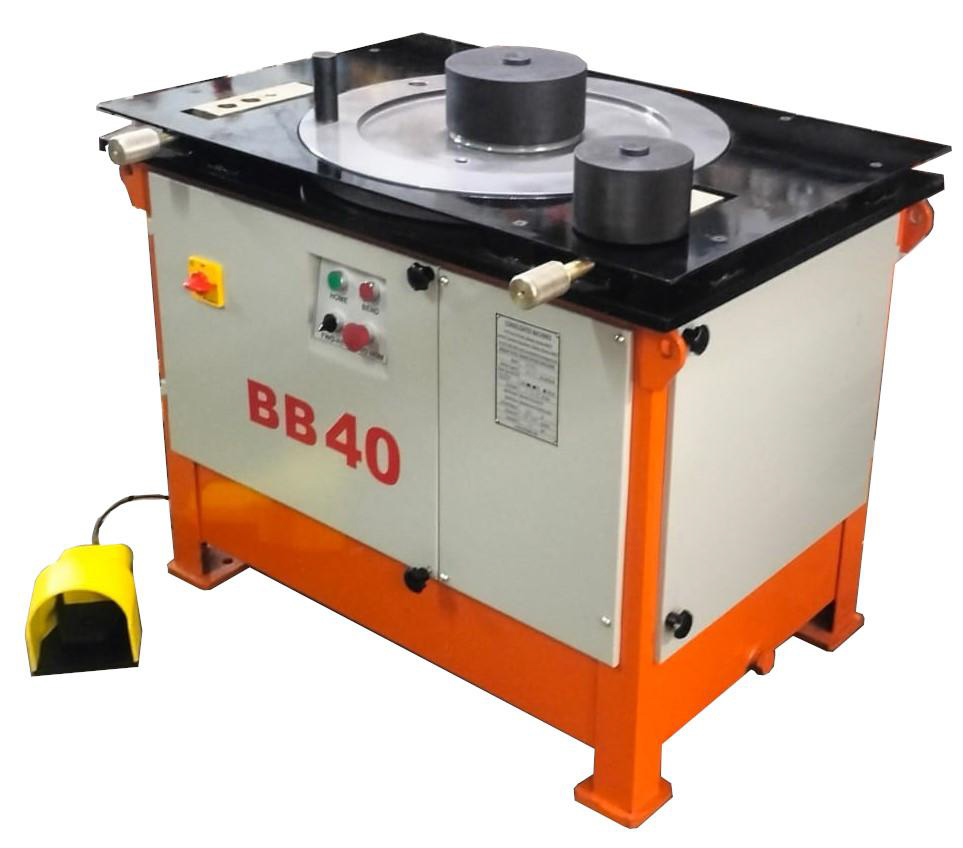

Bar Bundling Plant – BB40

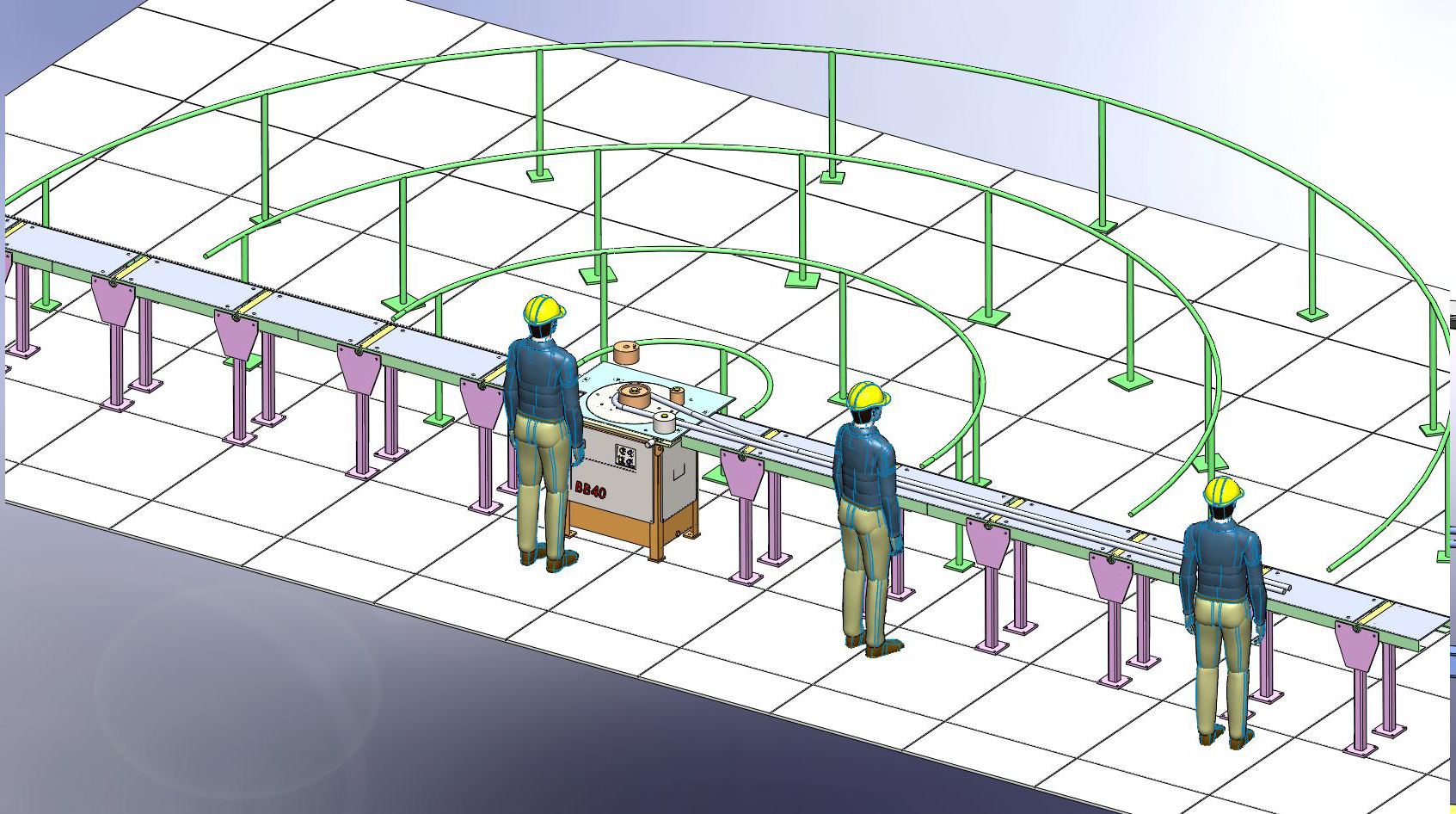

General Arrangement for a Basic Plant
TMT Rolling Mill and TMT Distributors, This Plant Comes Handy for Convenience Of Transportation Rebars Are Folded Half Way, Several Bars Bundled Maintaining Reasonable Weight of the Bundle to Enable Manual Handling
General Features
Electro-Hydraulic Controls : To Suit Semi/Full Automatic Process
Features : Bi-Directional Bending Operation to Suit User's Setup
Max Bar Size : 40 X 500 GR (UTS 580) Steel
Multiple Bar Capacity : Size 40/36/32 One Bar, 25X2Bars, 20X3, 16X5, 12X10, 10X14, 8X20 Nos
Typical Bending Speed : Near 7 Secs to Form a U Bend
Installed Power : 5HP (3.9KW) Three Phase Electric Motor
Size / Weight (MC Only) : 1000X650 – 900 MM Height. Weight: 550 Kgs
Materials and Finish
Tooling and Load Bearing Elements of Alloy Steel Toughened, Phosphate Finish
Panels Powder Coated, Structure Fabrication with Zinc Red-Oxide and Quality Paint Finish
